Physical
Dimensions (W x H x D mm)
214mm x 127mm x 45mm / 8.43” x 5.00” x 1.77”
Mounting Points
1/4”-20 screw mount. 1x top and 1x bottom
Environmental
Ambient operating temperature
Up to 40 Degrees Celsius
Construction
Body
Glass fiber reinforced polycarbonate
Cooling
Heat Sink + Actively controlled Fan
Touch Screen
Capacitive Touch
Power
Input Voltage
6.2V to 16.8V
Compatible Batteries
2x NP-F / L-Series batteries and supporting accessories
DC in Connector
1 x DC in (6.2 - 16.8V)
Display
Display Panel
IPS panel (capacitive touch)
Resolution
1920 x 1200 (1920 x 1080 Image Display)
Bit Depth
10-Bit (8+2 FRC)
Backlight Type
Zone Backlight (Full-Array Local Dimming)
Brightness (cd/m² / nits)
3000nit (+/- 10%)
Aspect ratio
16:10 native resolution 1920 x 1200
Color Gamut
Up to Wide color gamut (105% DCI-P3)
Calibration Support
ATOMOS Calibrator with Display Pro HL and Display Plus HL
Color Pipeline
Gamma
Sony SLog/SLog2/SLog3, Canon CLog/CLog2/CLog3, ARRI Log CEI160/Log CEI200/Log CEI250/Log CEI320/Log CEI400/Log CEI500/Log CEI640/Log CEI800/Log CEI1000/Log CEI1280/Log CEI1600, Panasonic Vlog, JVC JLog1, RED Log3G10/RED LogFilm, FujiFilm F-log, Nikon N-Log, PQ10k, HLG
Gamut
Sony SGamut/SGamut3/SGamut3.cine, Canon Cinema/DCI P3/DCI P3+, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709/BT.2020, JVC, RED WideGamut/RED DragonColor/DragonColor2/RED Color2/RED Color3/RED Color4
3D LUT Display
3D LUT (.cube format)
Monitoring Modes
Native / 709 / HLG / PQ / 3D LUT
HDR Output Conversion
Camera Log to HLG / PQ
Color Management
Calibration
Atomos Calibrator with Display Pro HL and Display Plus HL
Legalize
Full to Legal Range Conversion available via Input Menu
Video Input
SDI
Quad-Link 3G SDI with 2 x 12G SDI (backwards compatible)
Bit Depth
8/10-Bit for Video
Video Chroma Subsampling
YCbCr 4:2:0 & 4:2:2
Video Output
SDI Loop / Play Out
2 x 12G SDI (backwards compatible)
HDR
Yes with auto detection
Video Signal Conversion
Audio In/Out
Audio Quality
24-Bit / 48kHz
HDMI
2 or 8ch 24-Bit, Input dependent
Analog Audio In
Via optional 2 in 2 out XLR cable
Analogue Audio Out / Headphone Jack
3.5mm Jack
Audio Input Delay
Frame Delay on Analog Input (applied to recorded files)
Timecode / Sync
LTC
via full-sized BNC SYNC Port
Wireless SYNC
Connect an Atomos UltraSync One to the full-sized BNC SYNC Port
Resolution and Frame Rates (Record, Monitor & Playback)
4K UHD
up to UHDp60 via HDMI and SDI
2K DCI 2048 x 1080
up to 2Kp60 via SDI
FHD 1920 x 1080 Progressive
up to 1080p120 via SDI
FHD 1920 x 1080 PsF
Only via Pulldown to Progressive
FHD 1920 x 1080 Interlaced
1080i50 / 1080i60 via HDMI or SDI
Recording Codecs
Avid DNxHD
220x, 220, 145, 36 (.MOV Wrapper)
Avid DNxHR
HQX, HQ, SQ, LB (.MOV Wrapper)
Recording Functions
Pre-roll Recording
8s HD / 4K 2s
Playback
Playlist
Selected Clips, Favorites, or Combined
Loop
Supported, with user-customizable In / Out Markers
Apple ProRes
HQ, 422, LT (Linear PCM Audio only)
Avid DNx
DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)
Supported Media
Master Caddy I
Not Supported
Master Caddy II
Supported
Master Caddy III
Supported
On-Screen Tools
Waveform
3 Sizes – Adjustable Opacity & Brightness
RGB Parade
3 Sizes – Adjustable Opacity & Brightness
Vector Scope
2 Sizes – Adjustable Opacity & Brightness
Focus Peaking
3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity
Zebra
Adjustable Threshold (50% to 105%)
Isolate Color Channel
Blue Only
Cine Frame Guides
6 Presets
Social Frame Guides
4 Presets
Safe Areas
SMPTE Safe Title Area – 93% & 90%
Anamorphic Desqueeze
2x, 1.8x, 1.6x, 1.5x, 1.33x, 1.25x
Colorized Exposure
Atomos False Color
Onboard Signal Processing
4K UHD Downscale for HD
Loop-out and playback
DCI Crop
Available on loop out
Interlaced to Progressive
2:2 & 3:2 Pulldown
PsF to Progressive
2:2 & 3:2 Pulldown
Remote Control
HDMI
Auto HDMI Trigger Supported Protocols – Dolby Vision, Canon, Sony, Atomos Open Standard
SDI
SDI trigger camera selectable
Serial 2.5mm Jack
Start & Stop Recording via compatible LANC Remotes
Cut & Tag
FCP XML
Up to 10 Tags supported for each Clip
Supported Applications
XML
Apple Final Cut Pro (.fcpxml)
Video Codecs
All NLE applications that support Apple ProRes and Avid DNx in an .MOV Wrapper
What’s in the box
Box Contents

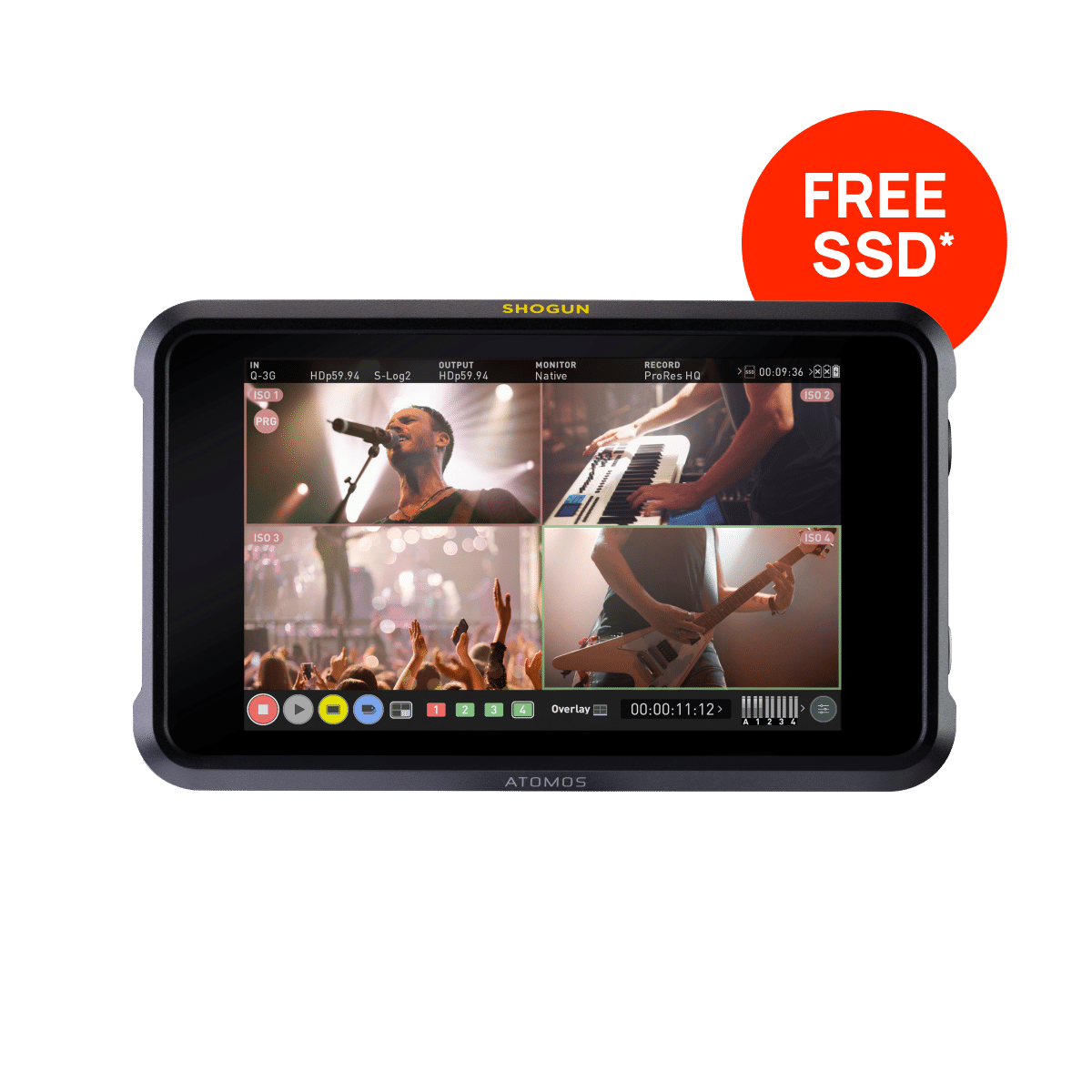

Shogun Classic unit, Master Caddy II x 1, 12V-3A AC power supply, Carry Case, Quick Start Guide
Optional Extras
AtomX Monitor Mount, AtomX Magic arm 10" / 13", USB-C Dock, PowerKit, HDMI Cables
Warranty
Extended
Extend to 2 Years with my.atomos registration
