SUPPORTED CAMERAS
Panasonic

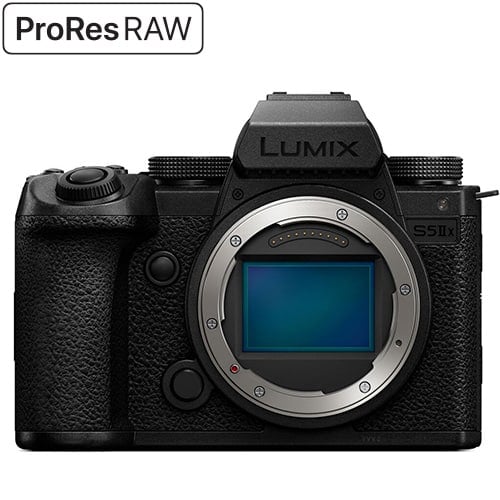

LUMIX S5IIX
Capture high-quality photos and video with this compact full-frame mirrorless camera. Advanced features like PDAF and I.S. (Image stabilization) make using the LUMIX S5IIX a truly rewarding experience. The LUMIX S5IIX will output RAW over HDMI to record up to 5.9K at up to 29.97fps ProRes RAW files when paired with an Atomos monitor-recorder.
PRODUCT SPECIFICATIONS
Connection
HDMI Connector Type
HDMI 2.0 Full
HDMI
RAW via HDMI
Output Recording
Video
10-bit 4:2:2
RAW
12-bit Linear
Camera Control (Shinobi II Only)
Supported
Yes
Basic camera control options
Rec Start/Stop (Video Mode)
White Balance
Shutter Speed
Aperture
ISO
Camera Status
Timecode Display
Shutter Release (Photo Mode)
Touch To Focus
Yes
Control Interface
USB-C
Trigger & Timecode
HDMI Timecode
HDMI Timecode
Audio
Audio Input
3.5mm Jack
Audio Output
2 channels on HDMI
Resolutions & Framerates Video (HDMI)
HDMI Video ProRes / DNx UHD 4k 3840 x 2160
up to 50/60
HDMI Video ProRes / DNx HD 1080 1920 x 1080
up to 50/60
Resolutions & Framerates RAW (HDMI)
HDMI ProRes RAW 5.9K (16:9) 5888 x 3312
29.97, 25, 23.98
HDMI ProRes RAW 4.1k (1.9:1) 4128 x 2176
59.94, 50, 29.97, 25, 23.98
HDMI ProRes RAW 3.5k (4:3) 3536 x 2656
50, 29.97, 25, 23.98
Note: AtomOS 10.92 or higher is required to record ProRes RAW from the Panasonic S5IIX.
